Product Description

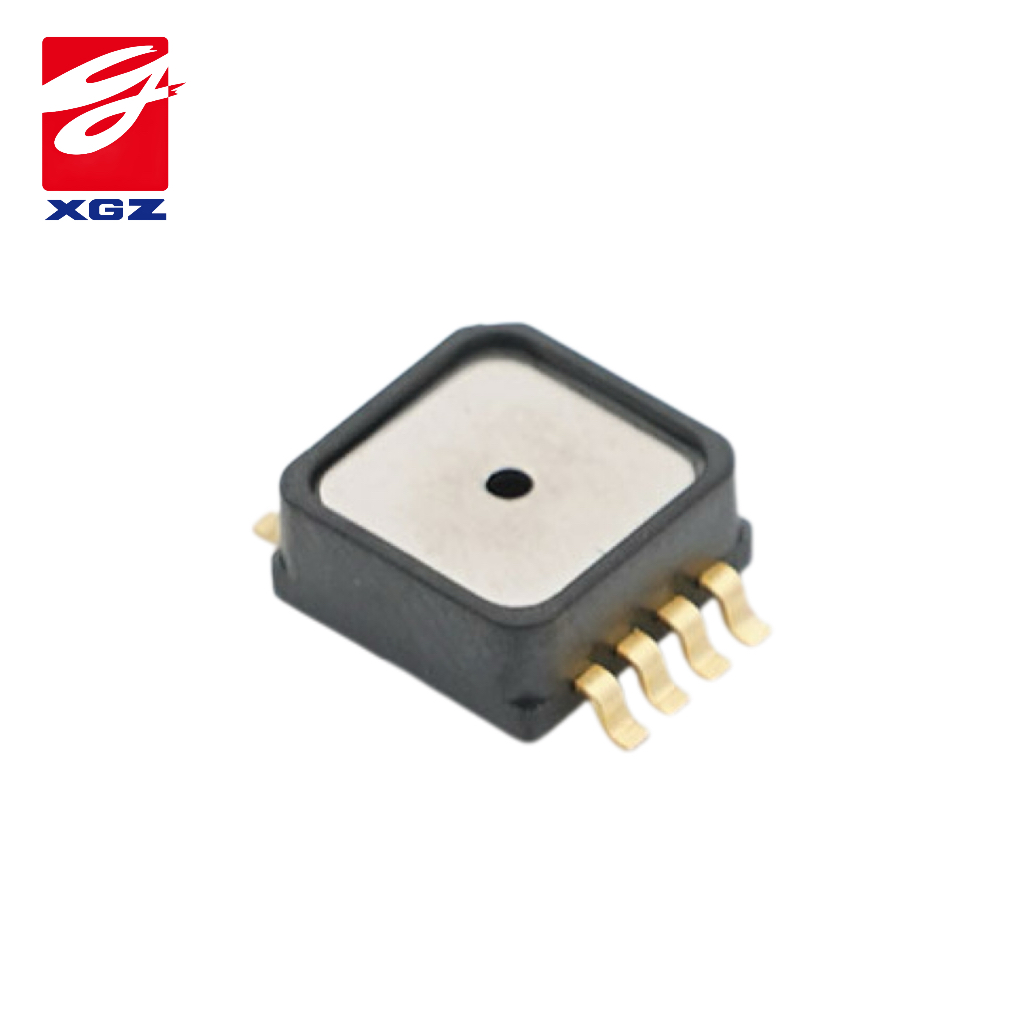

The GZP6878A pressure sensor adopts SMD packaging form, integrates pressure-sensitive chip and digital conditioning chip, digitally compensates for the offset, sensitivity, temperature drift and nonlinearity of pressure-sensitive chips, and generates a standard voltage after calibration and temperature compensation based on the power supply voltage. Signal.
Product Features
Measurement range 0kPa～100kPa...2500kPa
Absolute pressure type
3.3V or 5V power supply is optional
Support absolute/proportional voltage output, and the output curve can be customized
Moisture-proof and oil-proof
The pressure range can be customized
Application Field
Oil gauge measurement
Automotive air intake system, tire pressure gauge, on-board air pump and other automotive electronics fields
Air pump, vacuum pump, pressure switch, pneumatic control system and industrial equipment, etc.
Fire extinguishers, meteorological stations, navigation and other fields
Other absolute pressure measurement systems
