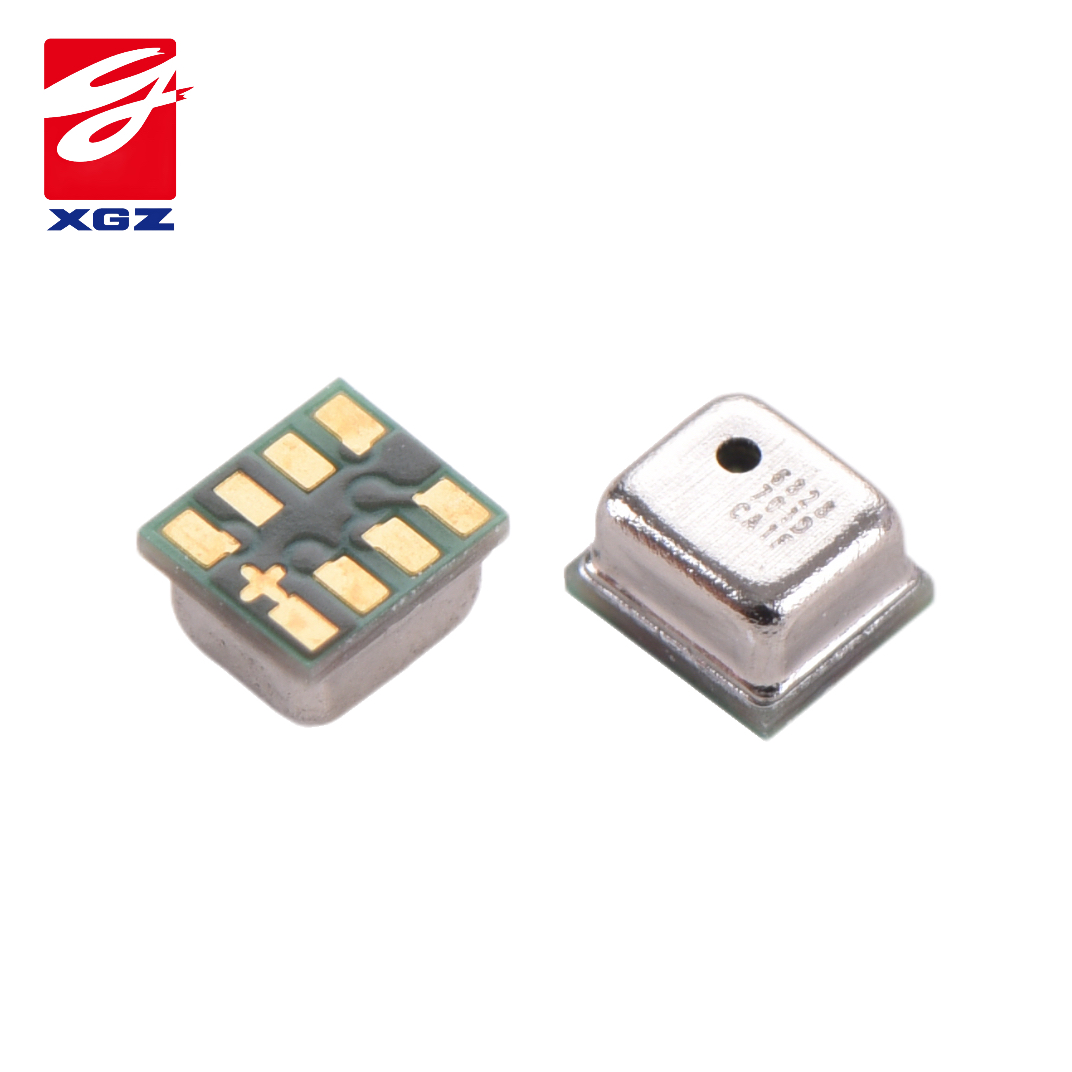

GZP6828D Pressure Sensor
Product Description
GZP6828D pressure sensor is a pressure sensor suitable for gauge pressure measurement. Its core part is a silicon piezoresistive pressure-sensitive chip processed by MEMS technology. The pressure-sensitive chip senses the pressure to be tested through the pressure nozzle and generates an electrical signal proportional to the applied pressure. The built-in circuit chip digitally compensates for the offset, sensitivity, temperature drift and nonlinearity of the sensor, and generates a calibrated and temperature-compensated digital signal (IIC) based on the power supply voltage.
Product Features
Measurement range 0kPa~100kPa...2500kPa
Absolute pressure type
2.5~5.5V power supply
IIC signal output
Moisture-proof and oil-proof
The pressure range can be customised
Application Field
Altimeter, meteorological station, navigation
Portable and fixed pressure gauges
Industrial equipment
Pneumatic control system
Vacuum system
Air pump
Automotive air intake pressure detection
Tire pressure testing
